Welded Wire Galfan Galvanised 75mm x 75mm Mesh Type Gabion
Brief introduction
welded gabion are wire mesh containers welded with high quality steel mesh. They can
be filled on site with hard durable stone materials to form mass gravity retaining structures.
Owing to their inflexibility, welded gabions can not adapt to differential settlement or be
used in water courses ,In comparison with woven wire gabions, welded gabions offer a
higher strength. In order to meet different project requirements, various wire diameters
and unit sizes are available for welded gabion boxes.
| Material | Steel Wire |
| Surface Treatment | Zinc Coated Welded Gabion(Common hot dipped galvanized or Heavy zinc coating ) |
| PVC Coated Welded Gabion |
| Zinc aluminum alloy Coated Welded Gabion(5% aluminum or 10% aluminum) |
| ASTM Standard | ASTM A 856 |
| ASTM A 641 |
Kindly note :
Size: based on customer need
(Below Box Size is just as reference , we can make it according to your last need ,as example : 2Meter x 1.5Meter X0.15Mtr )
Hole size : 50x50mm,75x75mm,50x100mm,100x100 mm etc
( below mesh size is just as reference we can make it according to your last need ,as example : 70X70mm
Connect way :Spiral wire,U clip,C ring,lacing wire,hook
SQUARE HOLE :
| Welded gabion unit | |
| Wire dia | 3.0-5.0mm |
| Size | 1*1*1m |
| 2*1*1m |
| 3*1*1m |
| 4*1*1m |
| 5*1*1m |
| Finish | Hot dipped galvanized, galfan coated |
| Hole | 50*50, 75*75, 100*100 etc |
RECTANGEL HOLE :
| Aperture(cm) | Wire diameter(mm) | Dimension of gabion box(m) |
| 5×7 | 2.4 | 0.5×0.5×1 |
| 5×7 | 2.7 | 1×1×1 |
| 5×10 | 3.5 | 1×1×2 |
Below is our workshop:-Gabion mesh panel ready
SPIRALS Hooks /Stiffeners Mesh panel
Application
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil.
Protection engineering of seaside area.
|
|

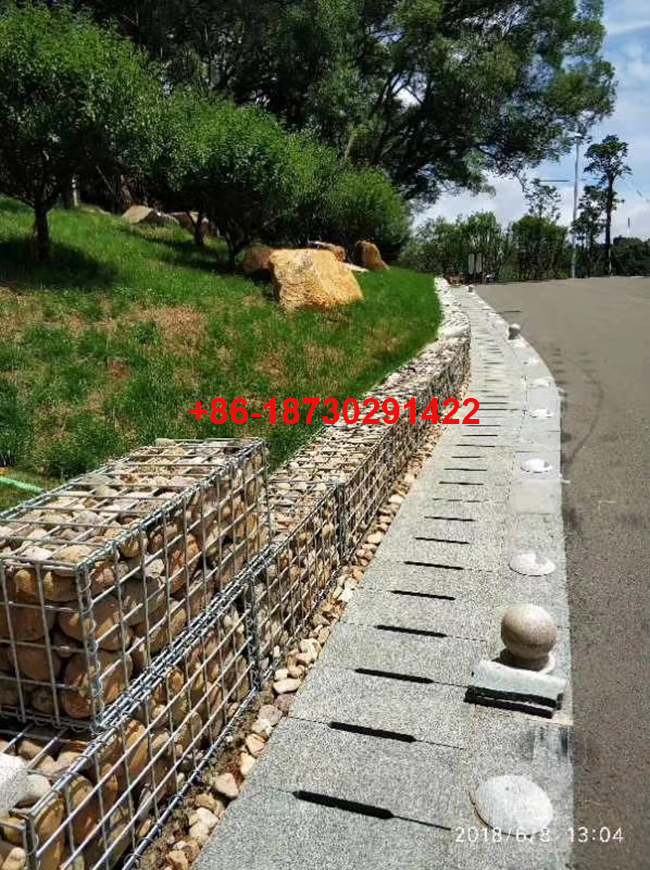

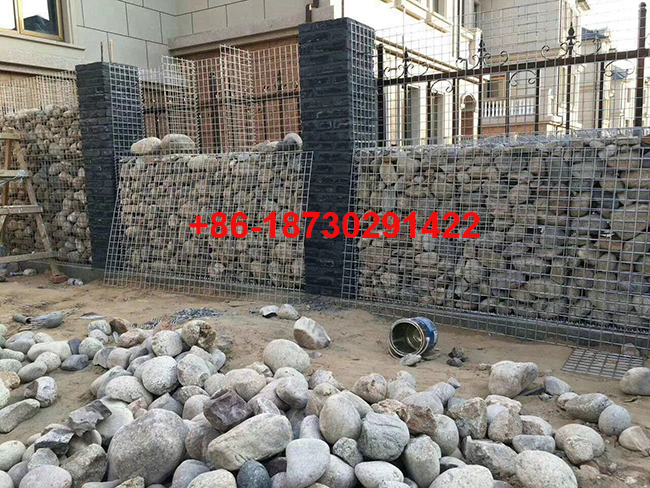

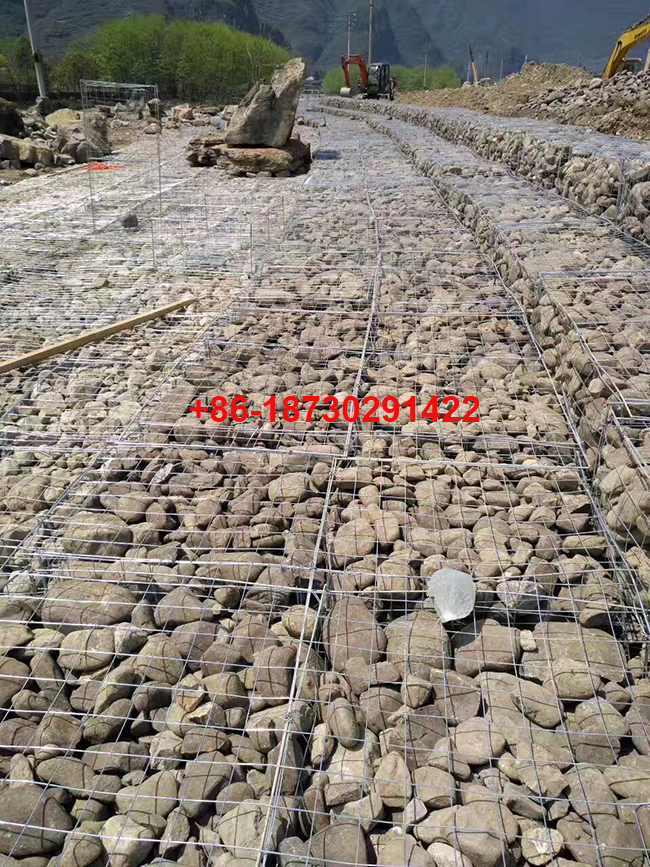

1 m high Professional Welded Wire Galfan Galvanised 75mm x 75mm Mesh Type Gabion for wall Images
|
