High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

OUR ADVANTAGE :we can do customerized welded gabion for beautify our life and landscape

1.Introduction of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

EXAMPLE SIZE :Gabion Box Size: 2.00 x 1.00 x 1.00m

Kindly note :

Size: based on customer need

(Below Box Size is just as reference , we can make it according to your last need ,as example : 2Meter x 1.5Meter X0.15Mtr )

Hole size : 50x50mm,75x75mm,50x100mm,100x100 mm etc

( below mesh size is just as reference we can make it according to your last need ,as example : 70X70mm

Connect way :Spiral wire,U clip,C ring,lacing wire,hook

2.Manufacture of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

A. PREPARE RAW MATERIAL -Steel wire

AS EXAMPLE : HUAYANG BRAND .( adopt China big factory , assure zinc coating is good and diameter is in exact )

B. Weavig Gabion Mesh Panel

(we use best machine to weave , it assure the welded points is strong and clean , and assure hole is more fixed )

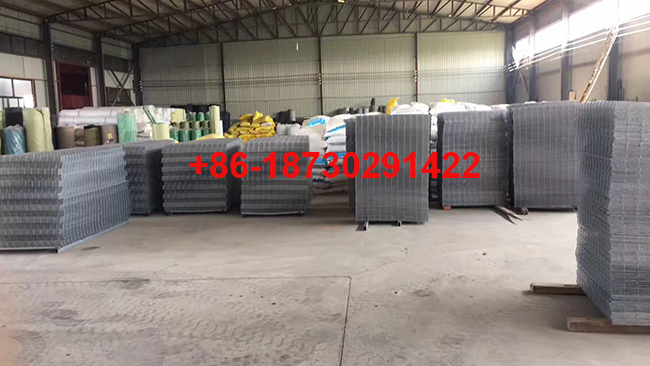

Below is our workshop:-Gabion mesh panel ready

C. Prepare -Spirals & Stiffener/Hook ,etc and start to install well :

SPIRALS Hooks /Stiffeners Mesh panel

D. Intall well of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Gabion box is filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

3.Packing of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

-- Pallet or carton

4.Application of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil.
Protection engineering of seaside area.

For the shape , we can do as customer real need

Example : we make S shape for our customer as below :

And we also do other gabion mesh :

Example : hexagonal hole & Hesco barrier
